Overview
Metric types
Lightup offers a full range of metric types. View Create and edit metrics for details on how to create each type.
Column metrics
Aggregation
Calculate an aggregate function on a column's values for a set of rows
Metric | Description | Column |
---|---|---|
Avg | Returns the sum of values divided by number of rows. | Numeric |
Count | Returns the count of values. | Any (not recommended for ID columns) |
Count Unique | Returns the count of distinct values. | Any (not recommended for ID columns) |
Max | Returns the largest value. | Numeric |
Median | Returns a number for which half of the values are smaller and half are larger. | Numeric |
Min | Returns the smallest value. | Numeric |
Percentile | Returns the value at or below which the specified fraction of values in its frequency distribution falls. | Numeric |
St.Dev | Returns the standard deviation. | Numeric |
Sum | Returns the sum of values. | Numeric |
Conformity check
Calculate the percent of rows that conform to a condition
Metric | Description | Column |
---|---|---|
Contains/Does not contain string | Compares selected column's values with input string. | String |
Equal/Not equal | Compares selected column's values with input. | Any |
Greater than | Compares selected column's values with input number and matches if the column's value is greater. | Numeric |
Greater than or equal to | Compares selected column's values with input number and matches if the column's value is greater. | Numeric |
In/Not in | Compared selected column's values with an input set of values. | Any |
In column/Not in column | Compares selected column's values with a second column's values. | Any |
Is decreasing | Checks that column values are always decreasing. Returns 100% when current value is less than the previous value, and 0% when it is greater than or equal to the previous value. | Numeric |
Is increasing | Checks that column values are always increasing. Returns 100% when current value is greater than the previous value, and 0% when it is less than or equal to the previous value. | Numeric |
Is unique | Checks for unique values. | Any |
Length equal to | Compares selected column's values with input number and matches if the length is equal. | String |
Length greater than | Compares selected column's values with input number and matches if the length of the column value is greater. | String |
Length greater than or equal to | Compares selected column's values with input number and matches if the length of the column value is equal or greater. | String |
Length less than | Compares selected column's values with input number and matches if the length of the column value is smaller. | String |
Length less than or equal to | Compares selected column's values with input number and matches if the length of the column value is equal or smaller. | String |
Less than or equal to | Compares selected column's values with input number and matches if the column's value is greater. | Numeric |
Match pattern/Does not match pattern | Compares selected column's values with input pattern. | String |
Match regex/Does not match regex | Compares selected column's values with input regular expression. | Any |
Null/Not null | Checks selected column's values for nulls. | Any |
Distribution metrics
Calculate the distribution of a column's values
Metric | Description |
---|---|
Distribution | Measures the distribution of distinct values. |
Comparison metrics
Calculate how much two similar objects match
Metric | Description |
---|---|
Compare aggregate | Measures the degree to which two aggregate metrics match. |
Row by Row | Measures the percentage of rows in two tables where the key columns match, and the values of attribute columns in those matching rows. |
Table metrics
Measure characteristics of a table or its behavior
Metric | Description |
---|---|
Data delay | Measures the time elapsed since the most recent data arrived. |
Data volume | Measures the number of rows loaded. |
Metadata metrics
Metadata metrics are a kind of table metric that can't be edited or customized
Metadata metric | What it measures | Supported datasources |
---|---|---|
Column activity | Columns added, altered (data type change), or dropped. | All |
Update Delay | Time since the last data write. | BigQuery, Databricks, Incorta, MS-SQL, Redshift, Snowflake |
Byte Count | The total number of bytes. | Databricks |
SQL metrics
SQL metrics support any valid SQL.

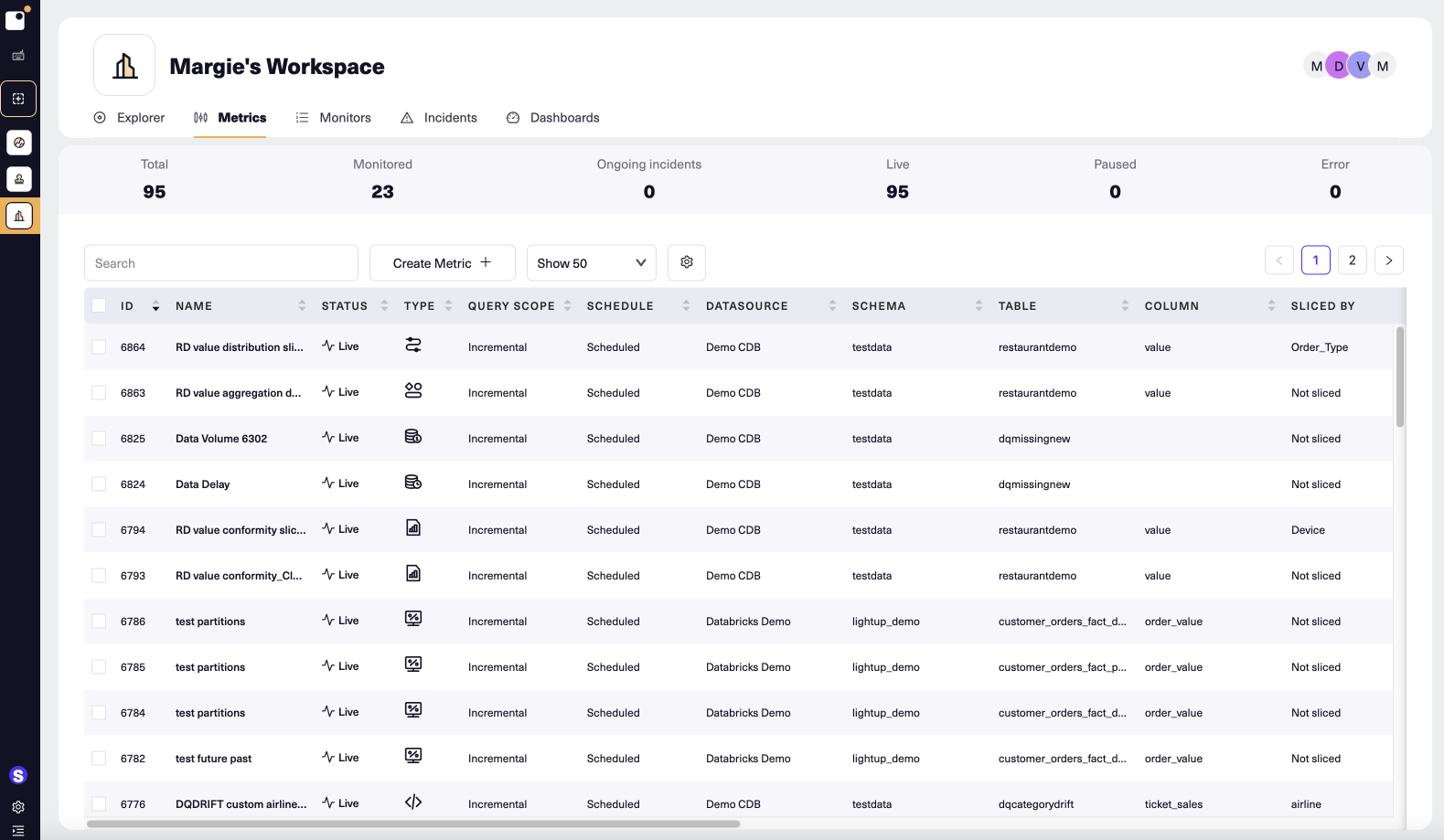

The Metrics list
The Metrics list is an easy way to work with all the metrics in a workspace. To open it, select Metrics in the top bar.
Assess metrics at a glance
Tiles across the top of the list display counts of metrics in the workspace:
- Total (all metrics)
- Monitored (metrics with at least one monitor attached)
- Ongoing incidents (metrics currently generating an incident)
- Live (metrics currently active)
- Paused (metrics currently paused for any reason)
- Error (metrics stopped by an exception, or after three query timeouts due to query governance settings)
Using list controls
Just above the list items, controls let you work with the list:
- Search for a metric across columns by name or by attribute.
- Create a new metric with Create Metric +.
- Select the number of rows to display per page by selecting Show <n>.
- Choose which columns to display by clicking on the gear icon.
- Navigation arrows and page numbers let you jump around in the list.
- The left column lets you select items to perform bulk operations on them.
Working with list items
In the list header, you have more options for working with list items:
- Select the check box to select all items on the page.
- Select a column heading to sort the list using the column's values in ascending order. Select it again to reverse the sort order. Select it a third time to stop sorting using that column.
- Click a value in the Name column to open a context menu that lets you do a variety of operations on that metric.
